Incredible Ø20/26 model with rigid double hinged B-axis unit and way better back tool unit(Y2)
∙ Extended stroke of Z1 240mm and Z2 286mm
∙ Upgraded built-in motor for both main / sub spindle
∙ Powerful cross motor (2.2kW, standard)

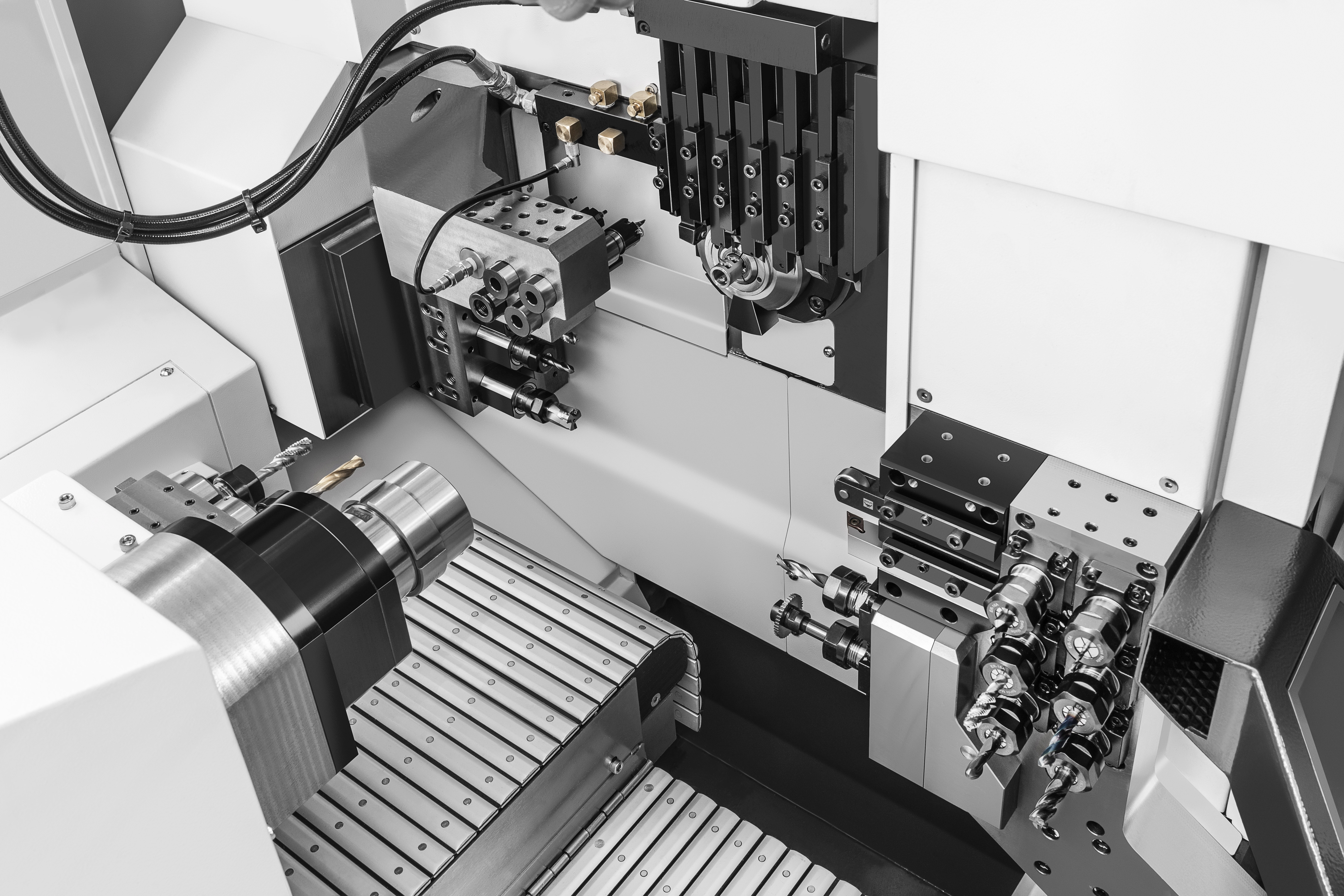

∙ The first double hinged B-axis unit on gang type tool layout model
∙ Outstanding C/T reduction with better innovative back tool(Y2) and B-axis unit
Specifications
|
. |
|
XV20 |
XV26 |
|
NH |
NH |
||
|
NC |
|
Fanuc 32i-B / Siemens 828D |
Fanuc 32i-B / Siemens 828D |
|
Max. machining diameter (mm) |
Ø20 |
Ø26 |
|
|
Z1 Stroke (mm) |
240 (H), 60 (N) |
240 (H), 80 (N) |
|
|
Main spindle |
Speed (rpm) |
10,000 |
8,000 |
|
Motor (kW) |
2.2/3.7 |
2.2/5.5 |
|
|
OD tool |
No. of tools |
□12mm x 6 |
□16mm x 5 |
|
Front tool |
No. of tools |
ER16M x 5 (Front 5 / Back 5) |
ER16M x 5 (Front 5 / Back 5) |
|

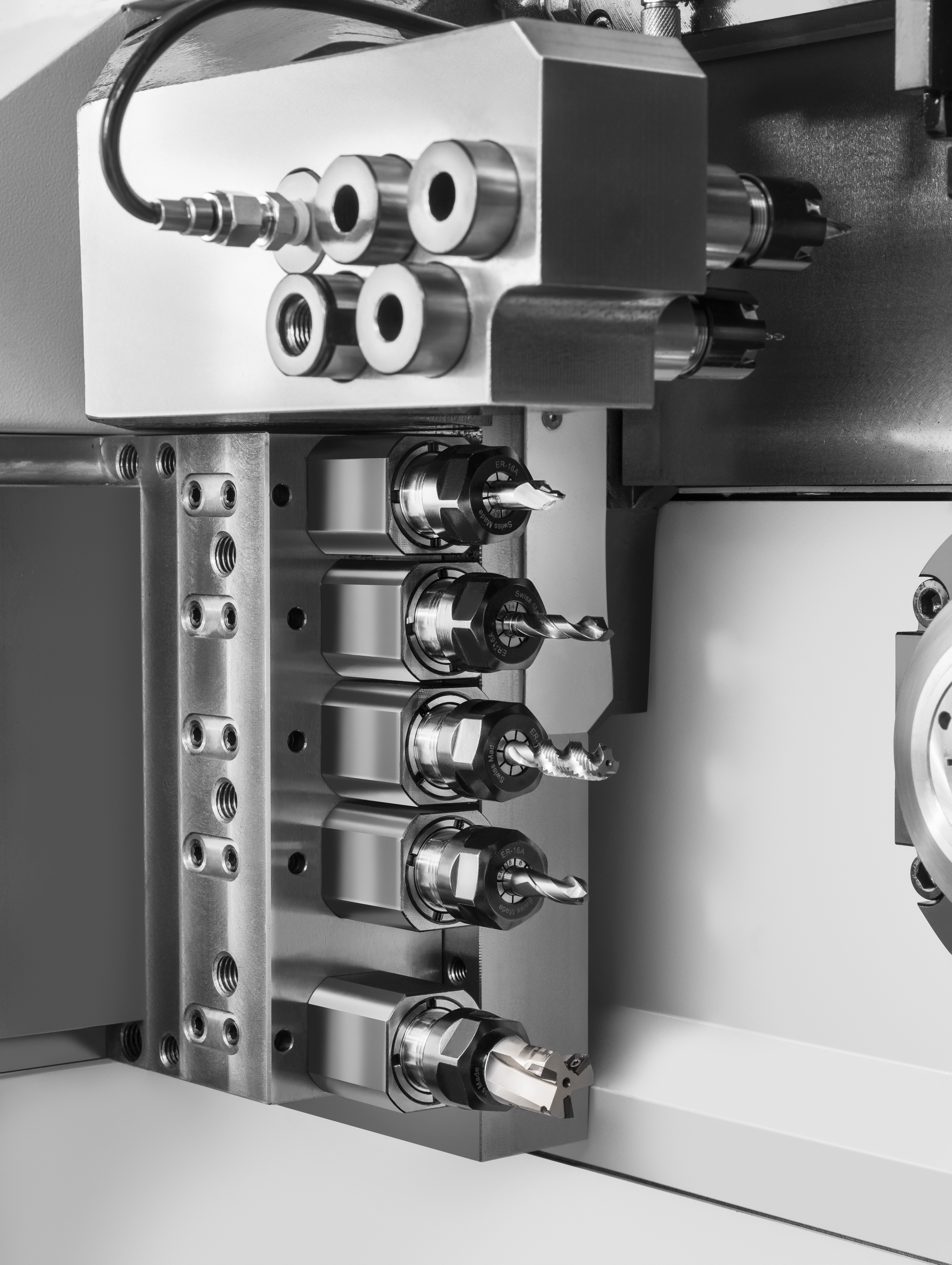

Cross drill |
Speed (rpm) |
9,000 |
9,000 |
|
Motor (kW) |
2.2 (Fanuc), 2.13 (Siemens) |
2.2 (Fanuc), 2.13 (Siemens) |
|
|
No. of tools |
ER16 x 5 |
ER16M x 5 |
|
|
Off-center drill |
No. of tools |
ER16 x 2 |
ER16 x 2 |
|
Sub spindle |
Speed (rpm) |
10,000 |
8,000 |
|
Motor (kW) |
2.2/3.7 (Fanuc), 16 (Siemens) |
2.2/3.7 (Fanuc), 16 (Siemens) |
|
|
Back tool |
Speed (rpm) |
8,000 |
8,000 |
|
Motor (kW) |
1.0 (Fanuc), 1.02 (Siemens) |
1.0 (Fanuc), 1.02 (Siemens) |
|
|
No. of tools |
ER16 x 8 (4 Fixed + 4 Driven) (option: Back 6, Cross 2, Turning 2) |
ER16 x 8 (4 Fixed + 4 Driven) (option: Back 6, Cross 2, Turning 2) |
|
|
Machine size (L x W x H) (mm) |
2,460 x 1,390 x 1,900 |
2,460 x 1,390 x 1,900 |
|
|
Weight (kg) |
3,100 |
3,100 |
|
|
Power consumption (Cable size) |
9kVA, 7.2kW (VCTF 10SQ x 4C) |
9kVA, 7.2kW (VCTF 10SQ x 4C) |
|
|
Air flow rate (Liter/Min) |
120 ~ 150 |
120 ~ 150 |
|
