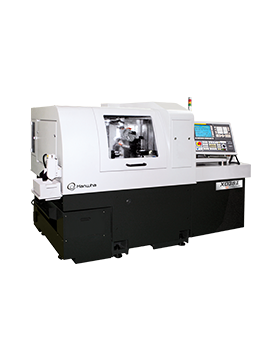

XD32/38II

CNC Swiss Turning Lathe

문의하기

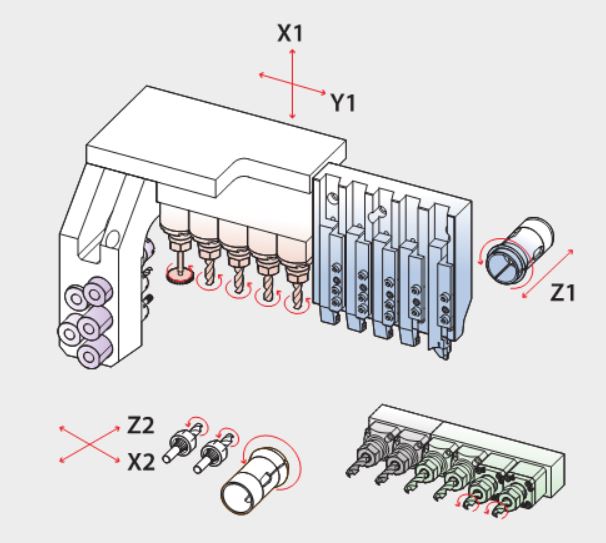

XD38II 툴레이아웃.JPG

고출력/고효율 CNC 자동선반

· 강력 절삭에 최적화된 구조 설계를 통하여 고강성 실현
· B축 및 Y2 적용으로 다양한 Tooling 가능
· 크로스드릴 출력강화, 32i-B NC 탑재로 비가공시간 최소화

제품사양

Specifications

    XD32/38II
H N NH He
NC   Fanuc 32i-B Hanwha Fanuc-i
Max. machining diameter (mm) Ø38 (Option : Ø32)
Z1 Stroke (mm) 320 80 142 (H), 80 (N) 320
Main spindle Speed (rpm) 6,500
Motor (kW) 5.5/7.5
OD tool No. of tools 5 (□16mm)
Front tool No. of tools 5 (ER20M, Ø32)
Cross drill No. of tools 5 (ER16)
Speed (rpm) 6,000
Motor (kW) 2.2
Off-center drill
(Option)
No. of tools 2 (ER16)
Modular
2 (ER16)
Non-modular
type Motor drive (6,000rpm, 1.0kW) Gear drive
Sub spindle Speed (rpm) 6,500
(Built-in motor)
6,500
(Spindle motor)
Motor (kW) 2.2/5.5 1.1/3.7
Back tool No. of tools 6 (ER16)
(4 Fixed + 2 Driven)
4 (ER16)
(2 Fixed + 2 Driven)
Speed (rpm) 6,000
Motor (kW) 1.0
Machine size (L x W x H) (mm) 2,570 x 1,440 x 1,740
Weight (kg) 3,600
Power consumption (Cable size) 25kVA, 16.7kW (VCTF 16SQ x 4C)
Air flow rate (Liter/Min) 120 ~ 150
* H : G/B, N : Non-G/B, NH : Convertible G/B, He : Hanwha Fanuc-i NC (with G/B)
