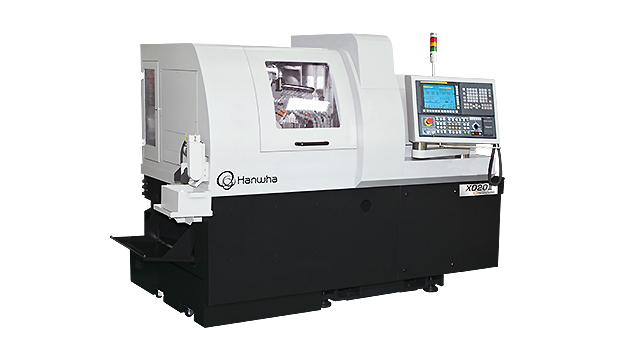

XD20/26II

CNC Swiss Turning Lathe

문의하기

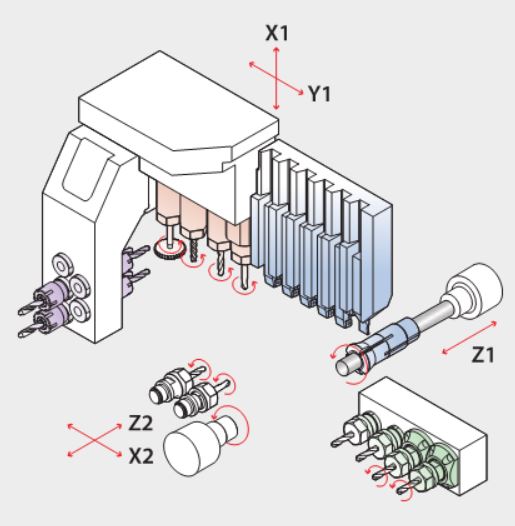

XD2026II 툴레이아웃.JPG

동급최강의 툴링 능력을 겸비한 모델

· 크로스드릴 출력강화,32i-B NC 탑재로 비가공 시간 단축
· 고난이도 툴링을 통한 고객만족 실현
· 베드,브라켓, 열대칭 및 고강성 구조 설계

제품사양

Specifications

    XD20/26II
H N NH M
NC   Fanuc 32i-B / Siemens 828D
Max. machining diameter (mm) Ø20/Ø26
Z1 Stroke (mm) 210 (Fanuc),
240 (Siemens)
60 160 (H),
50 (N)
210
Main spindle Speed (rpm) 10,000 (Ø20), 8,000 (Ø26)
Motor (kW) Fanuc : 2.2/3.7 (Ø20), 2.2/5.5 (Ø26)
Siemens : 14.4
OD tool No. of tools 6 (□12mm) (Ø20), 5 (□16mm) (Ø26) 5 (□12mm)
Front tool No. of tools 5 (ER16M, Ø25)
Cross drill No. of tools 4 (ER16 (Ø20), ER16M (Ø26)) 5 (ER16M)
Speed (rpm) 6,000
Motor (kW) Fanuc : 1.0, Siemens : 1.02
Off-center drill
(Option)
No. of tools 2 (ER16) 2 (ER16M)
Fixed long drill
Sub spindle Speed (rpm) 8,000
Motor (kW) Fanuc : 1.5/2.2, Siemens : 2.59
Back tool No. of tools 4 (ER16) (2 Fixed + 2 Driven)
Speed (rpm) 6,000
Motor (kW) Fanuc : 1.0, Siemens : 1.02
Machine size (L x W x H) (mm) 2,260 x 1,230 x 1,710
Weight (kg) 2,700
Power consumption (Cable size) 15kVA, 10kW (VCTF 10SQ x 4C)
Air flow rate (Liter/Min) 120 ~ 150
* H : G/B, N : Non-G/B, NH : Convertible G/B, M : Cross 5-axis+Long drills
