제품소개
이형부품, Shield Can 장착, Dispensing 등 다양한 특수 공정 작업에 최적의 솔루션과 편의성을 제공합니다.

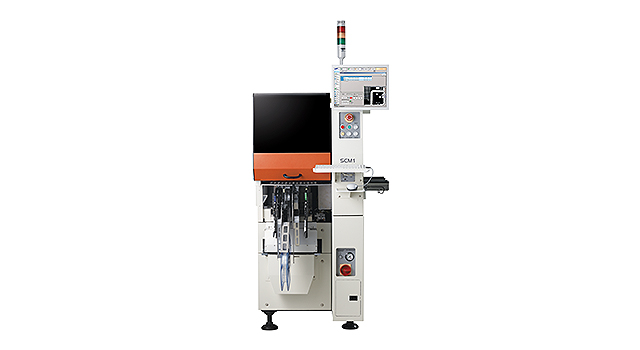

· 폭 680mm의 초슬림형 다기능 이형기
· 실드캔 장착에 최적의 솔루션 제공
· 이형부품 대응력 강화
· 실드캔 장착에 최적의 솔루션 제공
· 이형부품 대응력 강화
Specifications
| SCM1-D | SCM1-DP | ||
|---|---|---|---|
| Number of Spindles/ Head | 2Spindles x 1Gantry 1Spindles x 1Gantry | 2Spindles x 1Gantry (1Spindles + 1Dispenser) |
|
| Alignment | 1 Stage Vision | 1 Stage Vision | |
| PCB Transfer | Dual Lane | Dual Lane + Interver(Option) | |
| Placement Rate | 2,400 CPH(1 Spindle, Hanwha Techwin's Standard) 3,000 CPH(2 Spindle, Hanwha Techwin's Standard) | 2,400 CPH (1608, Hanwha Techwin's Standard) | |
| PlacementAccuracy | ±50 μm @ Cpk1.0 (1005) | ±50 μm @ Cpk1.0 (1005) | |
| Component Range | Stage vision (FOV45) | 1005 ~ □45 mm | 1005 ~ □45 mm |
| Max. Height | H15 mm | H15 mm | |
| PCB (mm) | Min. | L50 x W50 | L50 x W50 |
| Max. | ~ L295 x W250 ~ L250 x W25 (Option) | ~ L240 x W250 | |
| Thickness | 0.38 ~ 4.2mm | 0.38 ~ 4.2mm | |
| Feeder Capacity | 32 ea(16*Fraont/Rear Sides) | 16 ea(Front) | |
| Feeder Type | Tape Feeder | Tape Feeder, Label Feeder | |
| Utility | power | 1 Phase, AC 220V ±10% (50/60 Hz) Max. 2.0 kVA |
|
| Air Consumption | 0.5 ~ 0.7MPA(5.1~7.1 kgf/cm2) 150 Nℓ/min |
||
| Weight (kg) | Approx. 950kg | Approx. 920kg | |
| External Dimension (mm) | L680(865) x D1,870 x H1,480 (When including an extended conveyor) | L680(977) x D1,870 x H1,480 (When an Inverter is unstalled) |
|
