Product

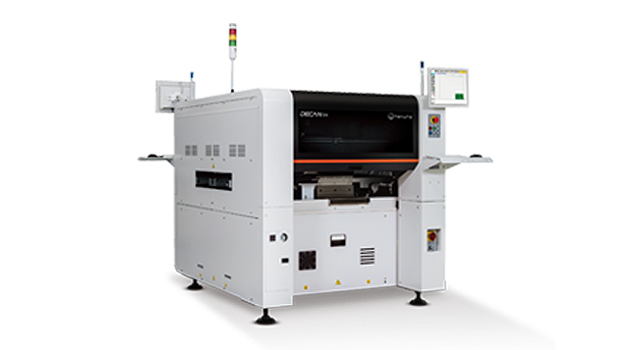

DECAN DS

High Effective LED Mounter

Inquiry

As a model dedicated to the placement of LED electronic displays, it offers the highest cost performance.

· Realizes optimum LED productivity
· Increases the availability to LED boards

Specifications

View Specifications

Specifications

AlignmentFly Camera
The Number of Spindles10 spindles x 2 Gantry
Placement Speed
(Optimum)		95,000 CPH
Placement Accuracy Chip±28 μm @ Cpk ≥ 1.0 (03015 Chip) *
Component Range Fly Camera03015 ~ □12mm
PCB Size (mm) Min.L50 x W40
Max.~ L510 x W280 (2PCB)
~ L510 x W520 (1PCB)
PCB Thickness (mm)0.38 ~ 4.2
Feeder Capacity
(8 mm standard)		 40ea
Utility power3 Phase AC 200/208/220/240/380/415V ± 10 %
Max. 5.0 kVA
Air Consumption5.0 ~ 7.0 kgf/cm2
50 Nℓ/min
Weight (kg)Approx. 1,688
External Dimension (mm)L1,430 x D1,740 x H1,485
