Hanwha Precision Machinery

.

XDI 26

XDI32

NH

NH

NC

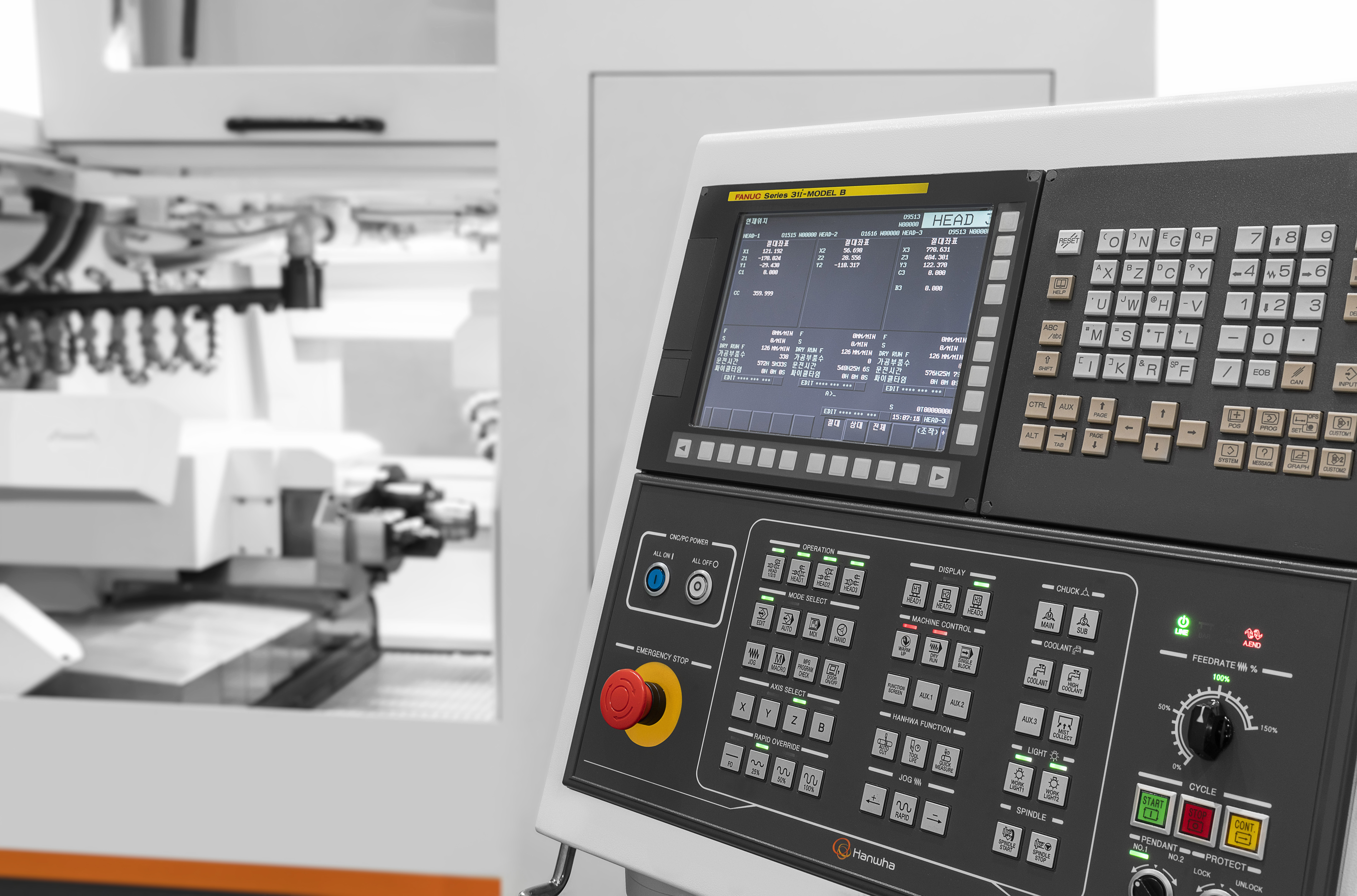

Fanuc 31i-B

Fanuc 31i-B

Max. machining diameter (mm)

Ø26

Ø32

Z1 Stroke (mm)

350 (H), 100 (N)

350 (H), 100 (N)

Main spindle

Speed (rpm)

8,000

6,500

Motor (kW)

2.2/5.5

2.2/5.5

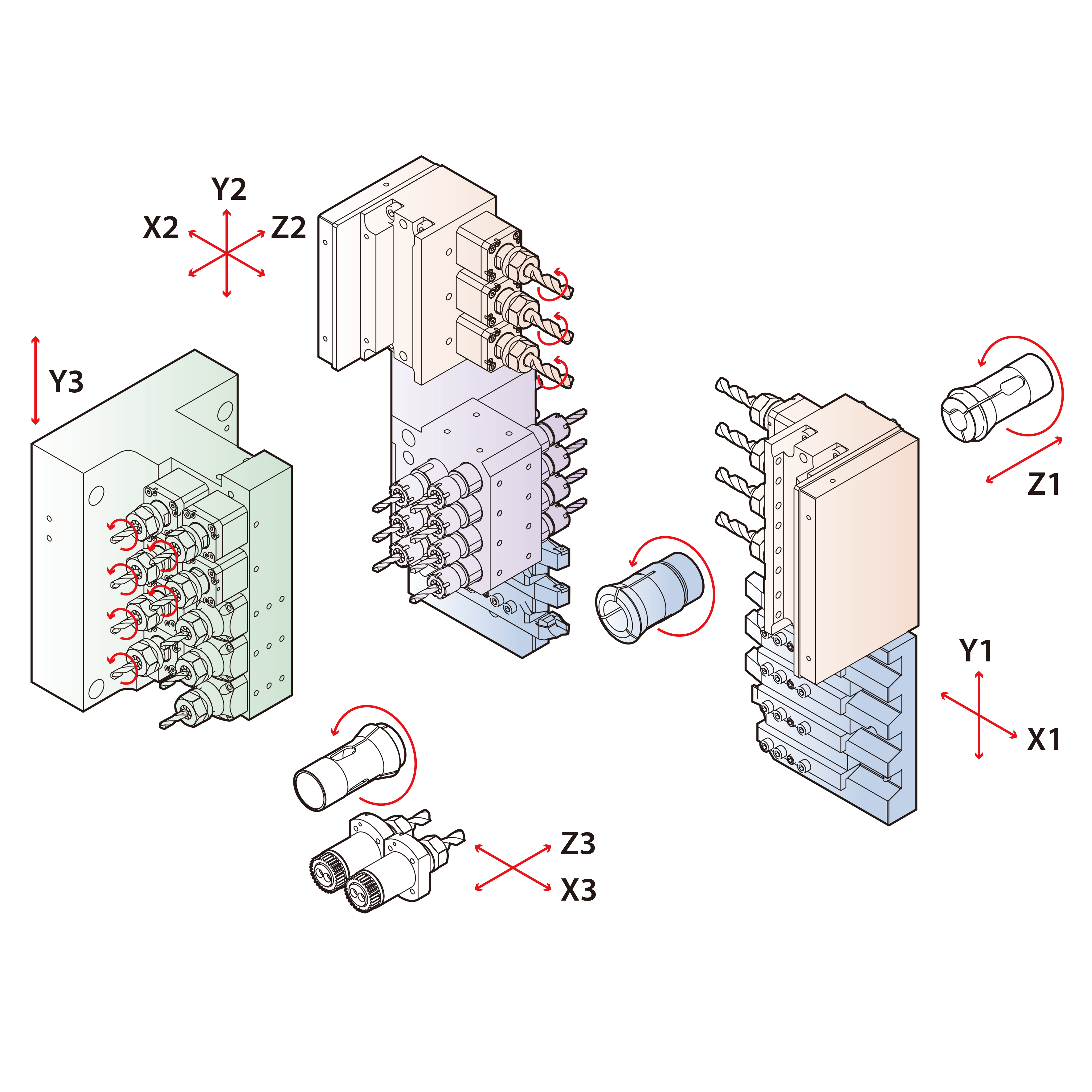

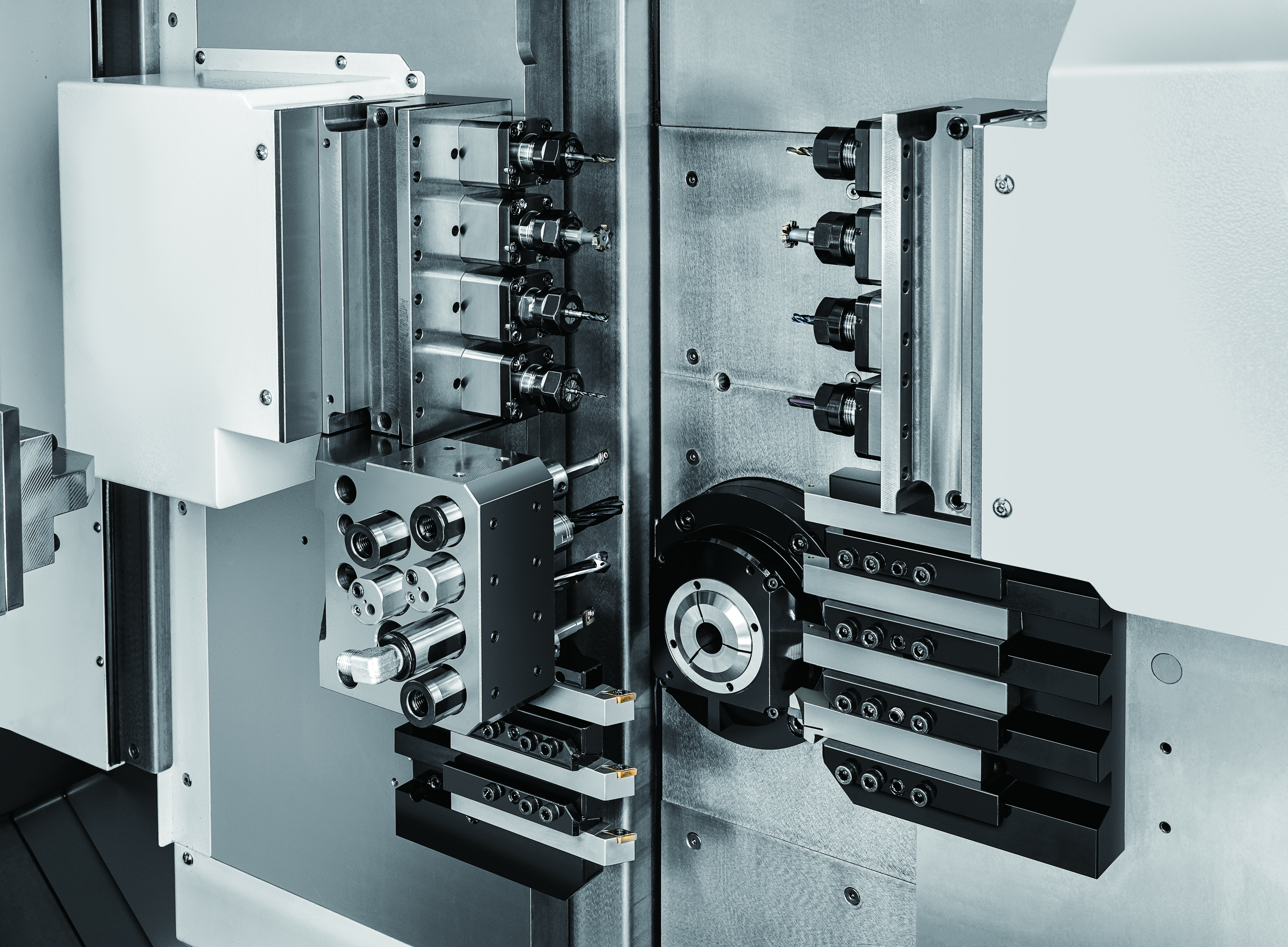

OD tool

No. of tools

□16mm x 7 (4+3)

□16mm x 7 (4+3)

Front tool

No. of tools

ER16M x 11 (Front 4 / Rear 7)

ER16M x 11 (Front 4 / Rear 7)

Cross drill

Speed (rpm)

6,000

6,000\

Motor (kW)

1.0

2.2

No. of tools

ER16 x 7 (4+3)

ER16 x 7 (4+3)

B-axis cross
(option)

Speed (rpm)

6,000

6,000

Motor (kW)

1.0

1.0

No. of tools

ER16 x 4 (Front 4 / Rear 4)

ER16 x 4 (Front 4 / Rear 4)

Sub spindle

Speed (rpm)

8,000

6,500

Motor (kW)

2.2/5.5

2.2/5.5

Back tool

Speed (rpm)

6,000

6,000

Motor (kW)

1.0

1.0

No. of tools

ER16 x 9 (Fixed 3 + Driven 6)

(Op.: Driven 6, Cross 3, Turning 2)

ER16 x 9 (Fixed 3 + Driven 6)

(Op.: Driven 6, Cross 3, Turning 2)

Machine size (L x W x H) (mm)

2,910 x 1,710 x 2,010

2,910 x 1,710 x 2,010

Weight (kg)

6,300

6,300

Power consumption (Cable size)

34.7kVA, 28.8kW

(VCTF 16SQ x 4C)

34.7kVA, 28.8kW

(VCTF 16SQ x 4C)

Air flow rate (Liter/Min)

120 ~ 150

120 ~ 150
