产品简介

STL42

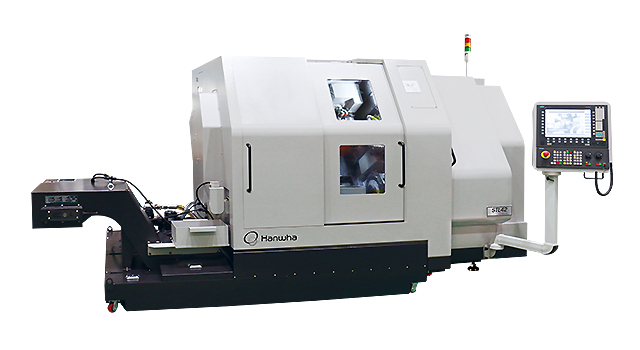

CNC Swiss Turning Lathe

咨询

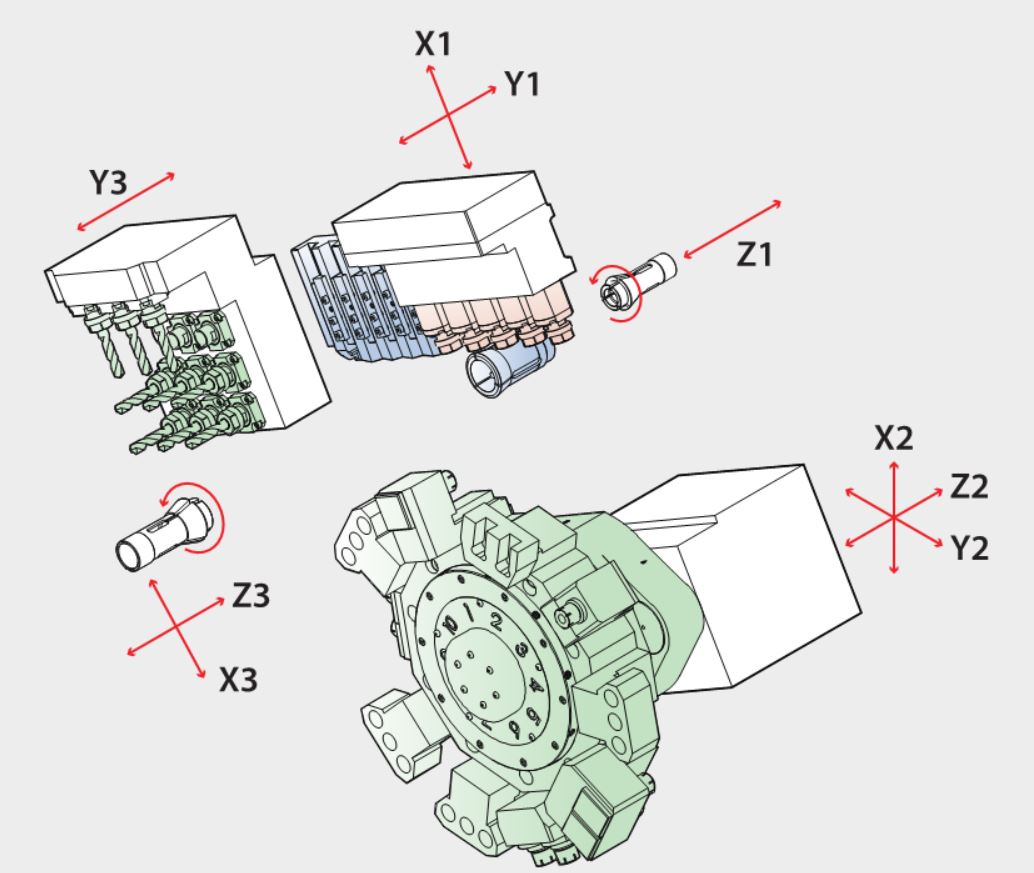

高度复杂的3通道模型和刀塔类型针对42型大型材料零件进行了优化

· 行程延长和刀架/刀架单元的刚性提高
· 为了稳定加工直径超过Ø42mm的材料,主轴单元,采用了液压卡盘油缸式设计
· 增加了新的HMI屏幕配置和改进的Siemens软件功能


Specifications

Specifications

    STL42
H NH
NC   Siemens 840D
Max. machining diameter (mm) Ø42
Z1 Stroke (mm) 420 282 (H), 125 (N)
Main spindle Speed (rpm) 6,000
Motor (kW) 22
OD tool No. of tools 5 (□20mm)
Cross drill No. of tools 5 (ER20)
Speed (rpm) 6,000
Motor (kW) 2.59
Turret unit No. of tools 1 Unit (10 Station)
No. of tools max. 30EA (□20, ER20)
Tool type VDI 30 (Option : BMT 45)
Sub spindle Speed (rpm) 6,000
Motor (kW) 22
Back tool No. of tools 9 (ER20)
(3 Fixed + 6 Driven)
Speed (rpm) 6,000
Motor (kW) 2.13
Machine size (L x W x H) (mm) 3,580 x 2,060 x 1,980
Weight (kg) 7,330
Power consumption (Cable size) 40kVA, 26.7kW (VCTF 16SQ x 4C)
Air flow rate (Liter/Min) 20 ~ 30 (Hydraulic device capacity : 30L)
